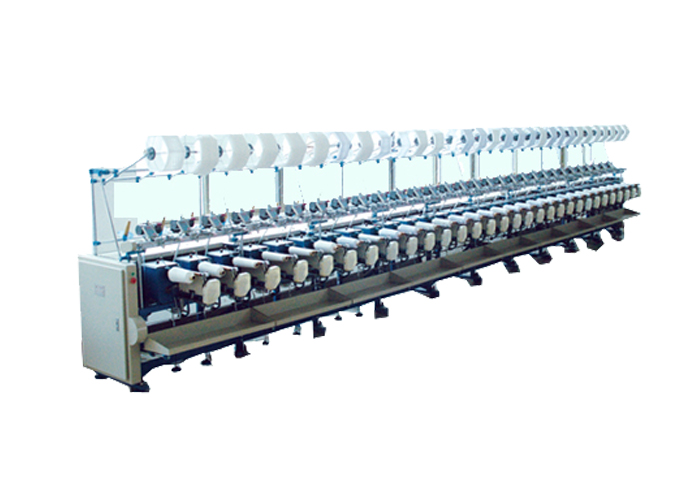

VC605T frequency conversion speed regulation winder
Vc605t frequency conversion speed regulating winding machine is suitable for feeding elastic yarn with size of 50d-300 days or 230 lb and 170 lb bobbins. It is used for warp, weft and knitting. This machine is equipped with a frequency converter that can control the winding length, automatically stop when the drum is full and automatically stop when the end is broken. It has automatic adjustment of spindle speed and arbitrary adjustment of overfeed wire speed to meet the requirements of slow start and constant wire speed, so that the main winding and overfeed yarn feeding can be optimally matched, ensuring the accuracy of winding, and it is an ideal high elastic yarn winding equipment at present

Technical Specifications
Type: single side, divided into left and right
Number of spindles: 24 spindles/set
Wire speed: 400m/min
Spindle rotation: clockwise
Cam stroke: 150 mm
Tensioning device: grid gate tensioner
Guide wire speed ratio: 6.4; 8.4
Spindle spacing: 300 mm
Bobbin type:Φ 62 times; 230 mm
Roll capacity: length 200mm diameter 200mm
Motor power: 120W/spindle speed 1400r/min
Over feeding motor: 25W/spindle speed 2800r/min
Overall dimensions (length× width× height): 7600 times; 997× 1850mm
